PRODUCTS / OUTDOOR / WALL LIGHT
HS-WOD001-CCT-BLACK
6W TRIAC Dimmable 3CCT Outdoor Wall Light
A compact square outdoor wall light with dual-beam illumination, phase-cut dimming and selectable 2700K, 3000K or 4000K output. Designed for façades, entrances, patios and garden walls.
6W · 320 lm
CRI 90 · Flicker-free
TRIAC · 5–100%
IP65 · 0–120° beam
CE · RoHS · ERP · IP65 · Class I · 3-year warranty
RATED POWER
6W
LUMINOUS FLUX
320 lm
IP RATING
IP65
DIMENSIONS
100 × 100 × 100 mm
PRODUCT DATA
Technical specifications
Electrical & optical
| Input voltage | 220–240V AC/DC |
| Frequency | 50/60Hz |
| Power factor | >0.8 |
| Dimming method | Phase-cut (TRIAC) |
| Dimming range | 5–100% |
| CCT | 2700K / 3000K / 4000K |
| CRI | 90 |
| SDCM | <6 step |
| Luminous flux | 320 lm |
| Flicker | Flicker-free |
Construction & operation
| Light source | Integrated LED |
| Material | Aluminium |
| Finish | Black |
| Optic | Clear cover |
| IP rating | IP65 |
| Electrical class | Class I |
| Operating temperature | −20 to +40°C |
| Installation | Wall-mounted |
| Lifetime | 25,000 h |
| Adjustability | 0–120° |
WALL-MOUNTED FORM
100 × 100 × 100 mm format
The compact aluminium housing combines an integrated LED light engine, adjustable dual-beam control and a selectable 3CCT system for coordinated exterior lighting.
- Black aluminium housing
- Integrated LED light source
- Selectable 2700K / 3000K / 4000K
- Adjustable 0–120° up-and-down beam
OUTDOOR PROJECT FLEXIBILITY
One wall light, three exterior moods
Select the required colour temperature before installation and adjust the beam from 0–120° to suit façades, entrances, patios and garden walls.

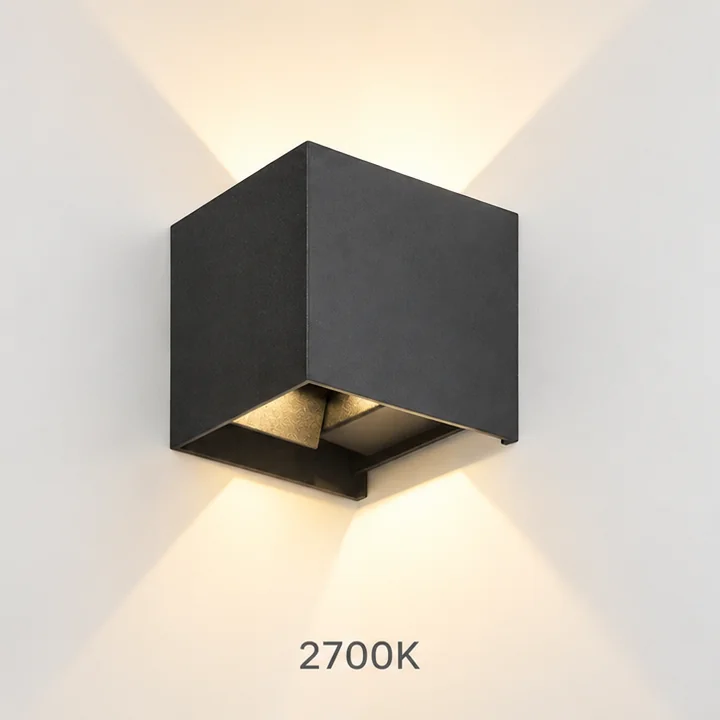

2700K
Warm, welcoming light for residential façades, entrances and hospitality terraces.
3000K
Balanced warm-neutral light for entrances, patios and exterior circulation areas.
4000K
Clear neutral light for functional exterior zones and contemporary façades.
Product details
Clean square aluminium housing in a black finish.
SUPPLY INFORMATION
Built for sample review and project supply
Neutral packaging is available for sample review and wholesale supply. OEM and ODM requirements can be reviewed with the HSKY team.
| MOQ | 500 pcs |
| Inner box / carton | 1 pc / 50 pcs |
| Inner box size | 110 × 110 × 110 mm |
| Carton size | 570 × 240 × 240 mm |
| Carton gross weight | 11 kg |
| Sample lead time | 7 days |
| Production lead time | 40–45 days |
| Packaging | Neutral packaging |
| Compliance | CE, RoHS, ERP |
| Warranty | 3 years |
Verify dimmer compatibility before ordering
Dimming performance depends on the selected dimmer, wiring and installation conditions. Share your dimmer model or project requirements with HSKY for compatibility verification.
