HS-MIN05-12V
3000K
A compact 3W spotlight for focused accent lighting, operating from a compatible 12V DC supply. This page covers the 3000K version.
Compact installation
Ø35 × H28 mm, with a Ø28 mm cut-out.
Focused light
35° beam and 220 lm catalogue output.
12V system
Use with a compatible 12V DC driver. Confirm driver capacity and dimming compatibility for the selected set.
Technical specifications
| Model | HS-MIN05-12V |
|---|---|
| Version | 3000K |
| Power | 3W |
| Input voltage | 12V DC |
| Luminous flux | 220 lm (catalogue value) |
| CRI | 85 |
| Beam angle | 35° |
| Colour temperature | 3000K |
| Optics | Lens |
| IP rating | IP44 |
| Dimensions | Ø35 × H28 mm |
| Cut-out | Ø28 mm |
| Dimming | TRIAC via compatible 12V dimmable driver |
Installation notes
The light requires a 12V DC supply. Do not connect the spotlight directly to mains. Match the driver to the total number of lights and the intended dimming system.
Confirm the final driver configuration, installation requirements and current technical files with HSKY before ordering.
Product views
Images show the catalogue product family. Confirm the required finish and version with your enquiry.

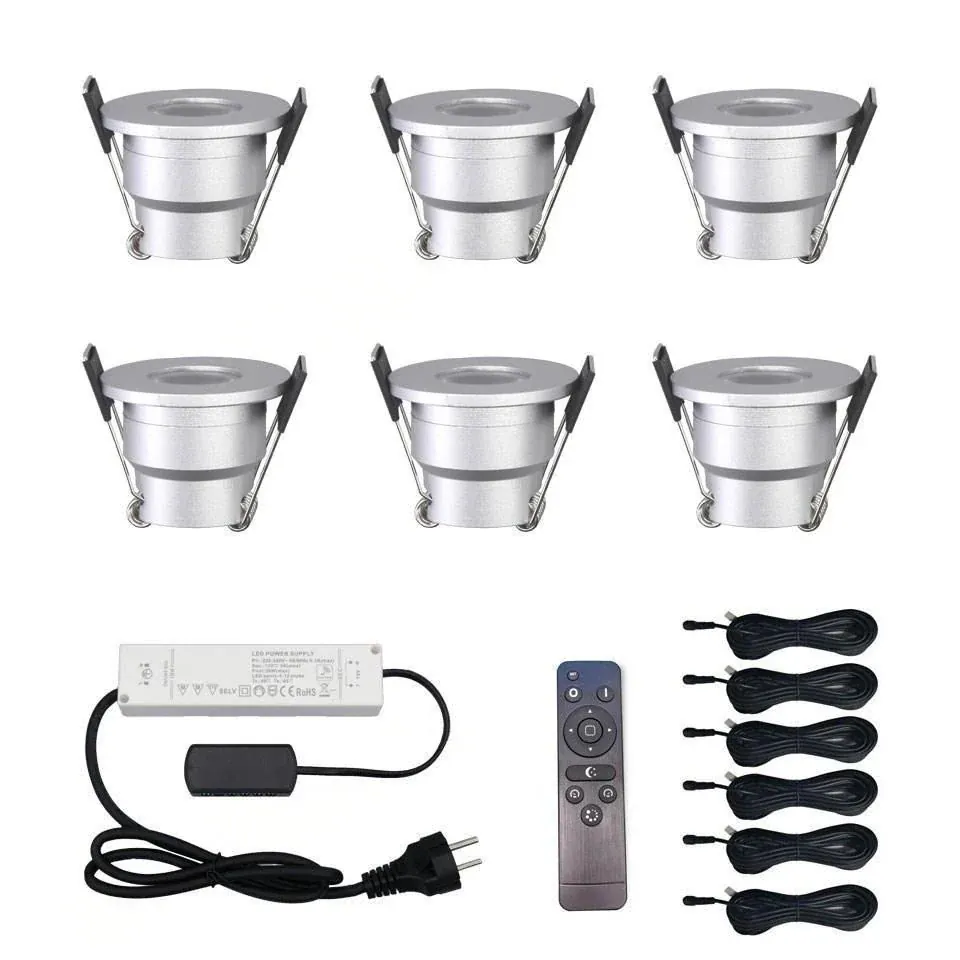

Single light and set configurations
The catalogue also lists 4, 6 and 12 light sets. The dimensions and beam angle apply to each spotlight.
| Configuration | Catalogue model | Total power | Catalogue output |
|---|---|---|---|
| Single light | HS-MIN05-12V | 3W | 220 lm |
| 4 light set | HS-MIN05-12V-4S | 4 × 3W | 880 lm |
| 6 light set | HS-MIN05-12V-6S | 6 × 3W | 1320 lm |
| 12 light set | HS-MIN05-12V-12S | 12 × 3W | 2640 lm |
Set images are representative. Confirm included components, cable lengths and the driver specification with HSKY.
Other versions
Specify your spotlight.
Request samples, technical files and a quotation for your selected model.
Request a quotation →
