Square Recessed GU10 Fitting
HS-RCL65-GU10-S1
A crisp square trim brings geometric detail to the ceiling, with a recessed GU10 lamp position and an IP65 aluminium housing.
Lighting effects shown are illustrative. Light colour, output and control depend on the separately selected lamp.
Replaceable GU10 lamp
Choose a compatible LED lamp for the colour temperature and light output your project needs. Lamps are supplied separately.
Clean recessed finish

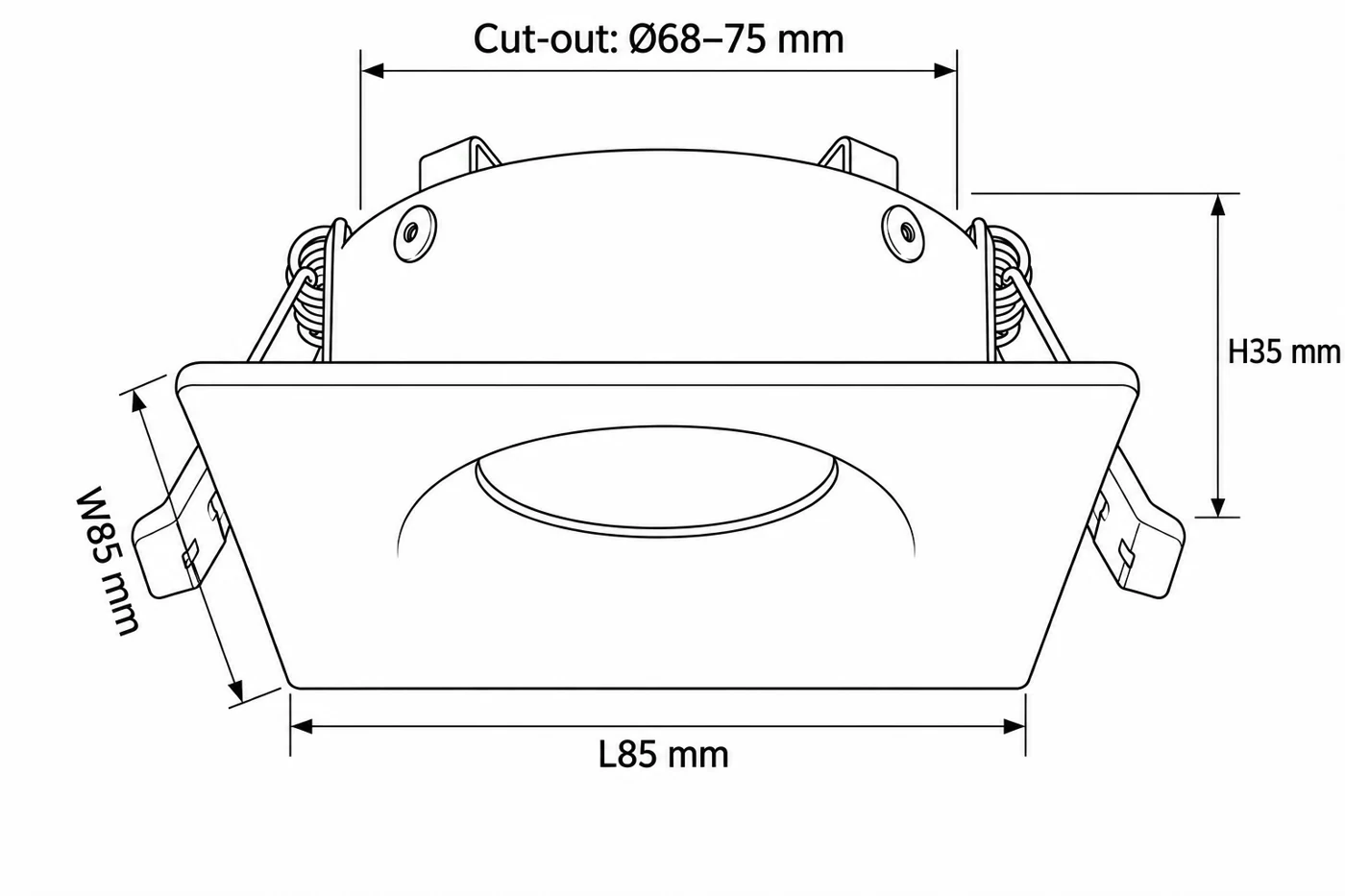

An 85 mm trim and 68–75 mm cut-out suit a neat ceiling layout. Allow space above the fitting for the chosen lamp and wiring.
IP65 housing
A moisture-resistant fitting for suitable damp-room and sheltered exterior ceiling locations.
Technical specifications
| Model | HS-RCL65-GU10-S1 |
|---|---|
| Lamp holder | GU10 |
| Installation | Recessed ceiling |
| Dimensions | L85×W85×H35 mm |
| Material | Aluminium |
| IP rating | IP65 |
| Supply voltage | 220–240 V |
| Maximum lamp power | Max. 7W |
| Ceiling cut-out | Ø68–75 mm |
| Available finishes | White / Black / Silver |
| Lamp included | No — fitting supplied without lamp |
| Included accessories | Lamp holder, connection terminal and screws |
The 35 mm measurement is the fitting height, not the complete installation depth with a GU10 lamp.
Choose the finish for your space.

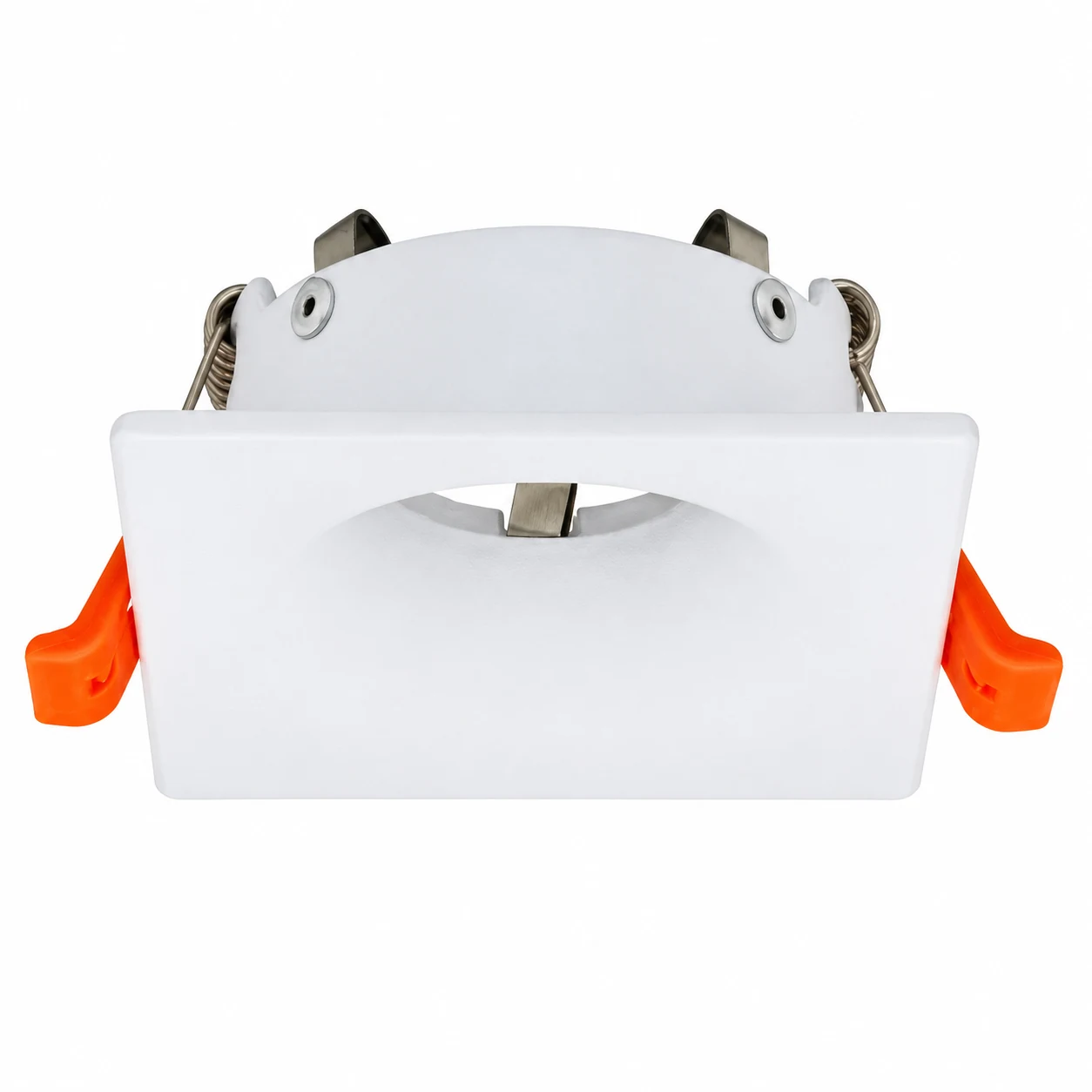

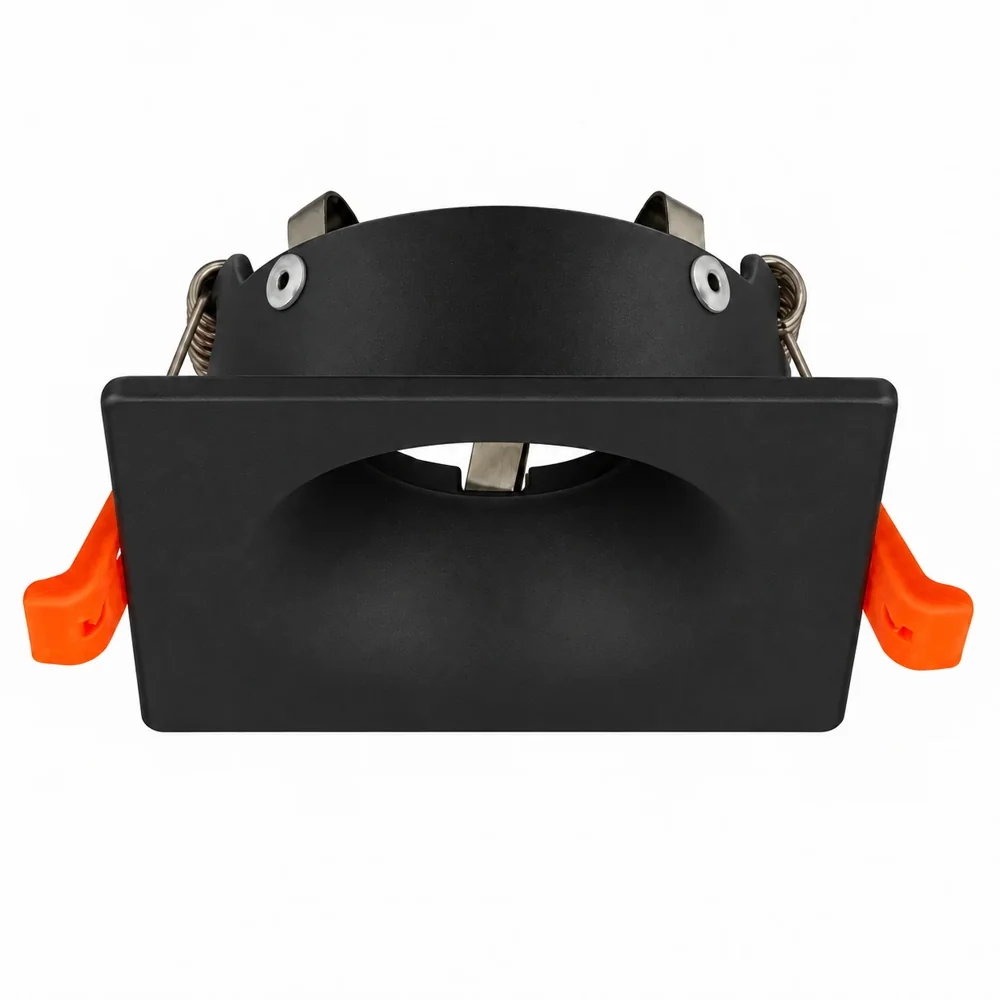

White · Black · Silver
Silver finish available on enquiry; not pictured here.
Lamp choice & installation
Pair this fitting with a compatible GU10 LED lamp. Dimming, colour temperature, brightness and smart functions are determined by the lamp and control equipment selected.
Keep all seals and covers correctly fitted to maintain the stated protection. Installation must suit the mounting surface, location and applicable electrical requirements.
