HS-TDL0602-3C
3CCT
A 30 mm profile with a Ø68 mm cut-out and reflector optics. Select 2700K, 3000K or 4000K using the CCT switch.
30 mm profile
A shallow body for ceiling projects with limited installation space.
CCT selection
2700K, 3000K and 4000K modes in one fitting.
TRIAC dimming
Adjust brightness with a compatible TRIAC dimmer.

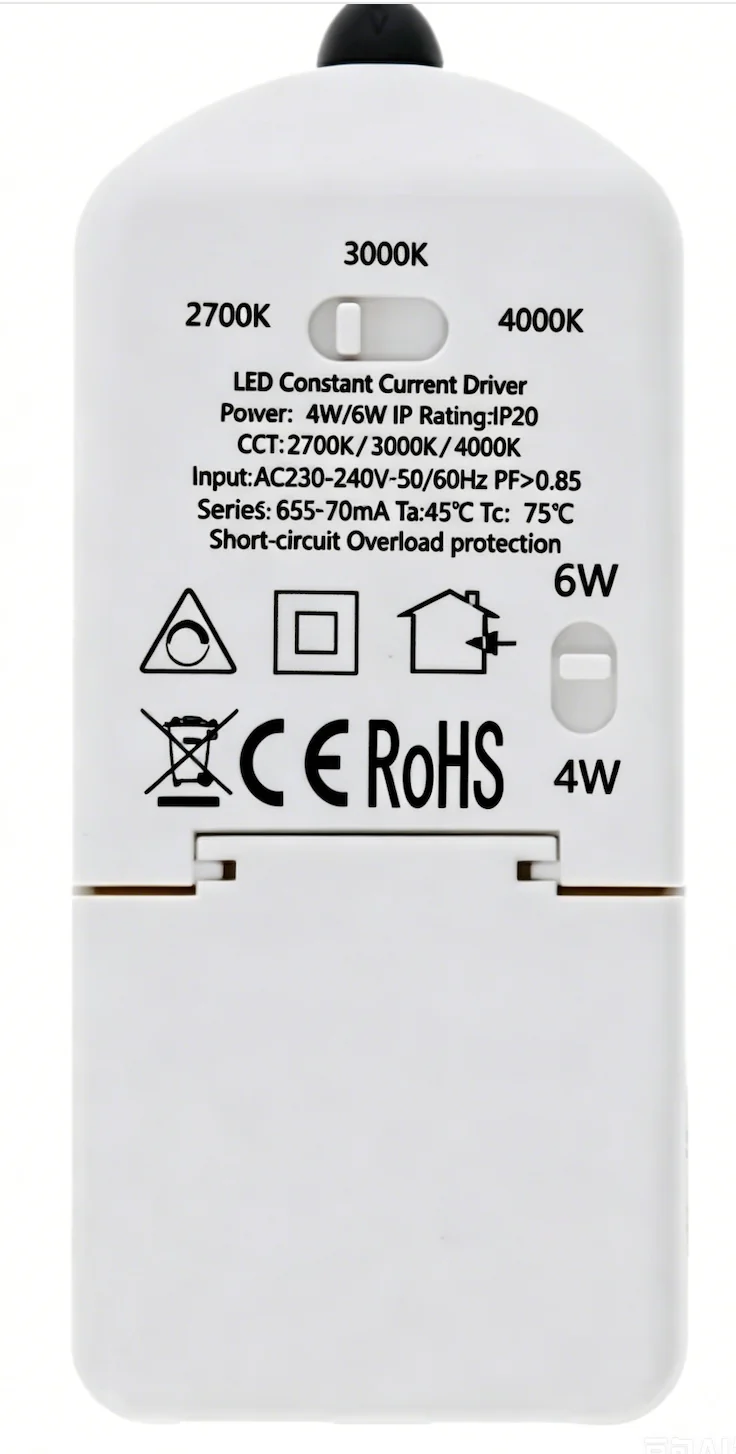

Dual wattage & 3CCT
The driver has independent switches for power and colour temperature, making it easy to set the light for your installation.
Wattage switch
Select 4W or 6W using the lower switch.
CCT switch
Select 2700K, 3000K or 4000K using the upper switch.
Driver housing: IP20. The spotlight body is rated IP65.
Technical specifications
| Model | HS-TDL0602-3C |
|---|---|
| Version | 3CCT |
| Power | 4W / 6W switchable |
| Input voltage | 230V |
| Luminous flux | 450 lm (catalogue value) |
| CRI | 90 |
| Beam angle | 60° |
| Colour temperature | 2700 / 3000 / 4000K |
| Optics | Reflector |
| IP rating | IP65 |
| Dimensions | Ø82 × H30 mm |
| Cut-out | Ø68 mm |
| Dimming | TRIAC |
| Power factor | >0.85 |
Installation notes
Allow room for the driver, wiring and safe installation in addition to the 30 mm fitting body. Match the dimmer to the specified driver and installation load.
Confirm the final driver configuration, installation requirements and current technical files with HSKY before ordering.

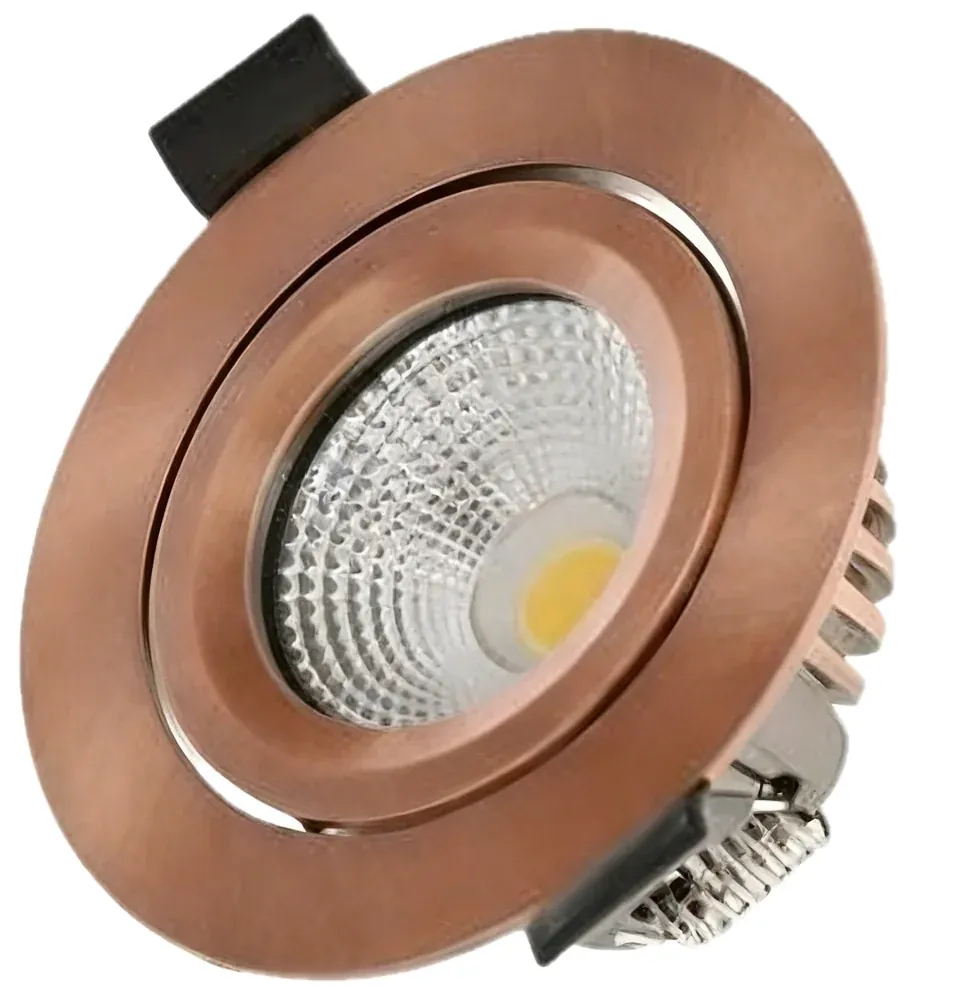

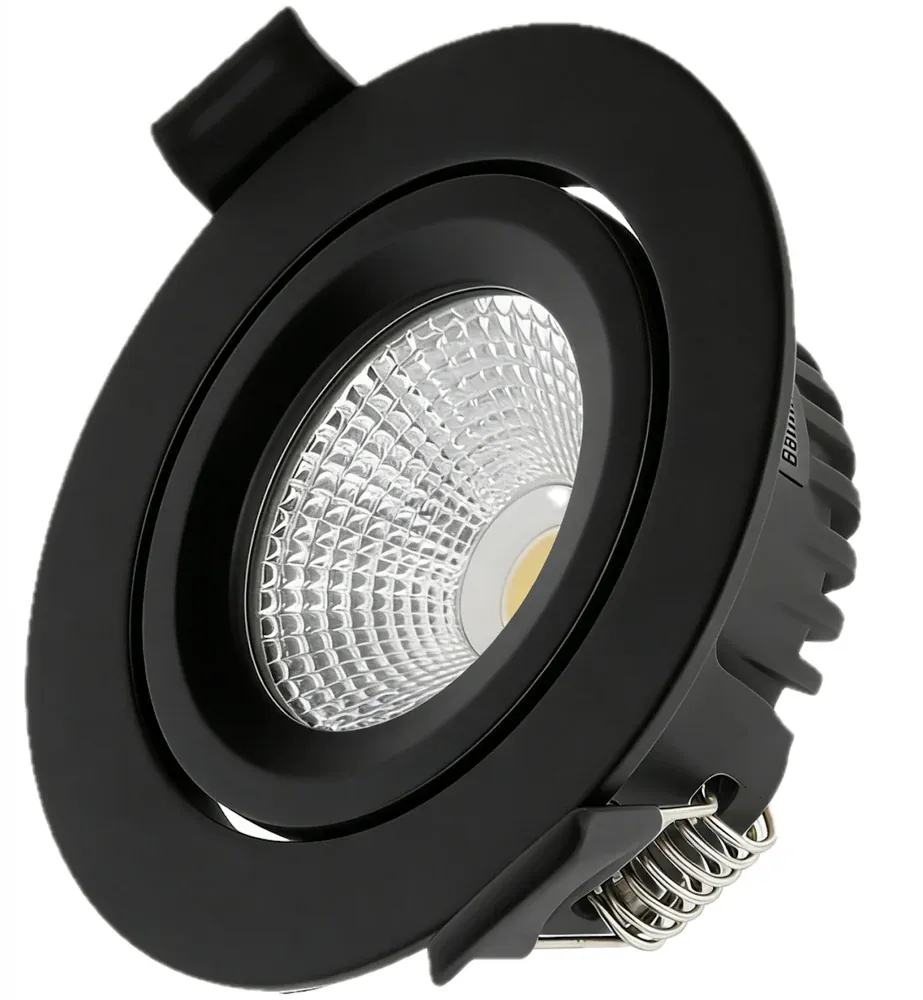

Finish views
Images show the catalogue product family. Confirm the required finish and version with your enquiry.
Other versions
Specify your spotlight.
Request samples, technical files and a quotation for your selected model.
